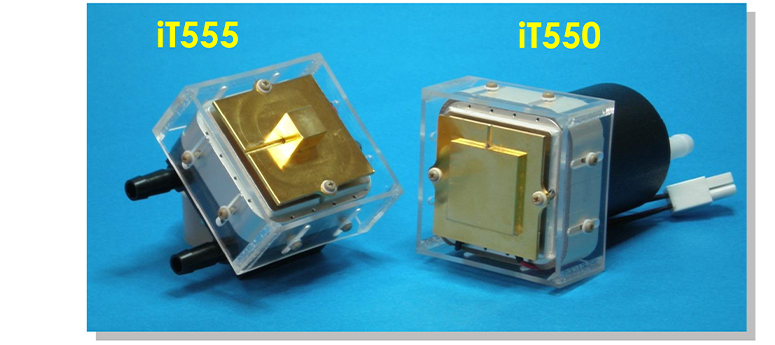

MAXPOWER Peltier temperature control head
iT550 / iT555
Features
- Temperature range available from -60℃ to +145℃.
- Ideal for temperature characteristic testing of automotive electronic components, semiconductors, and material testing.

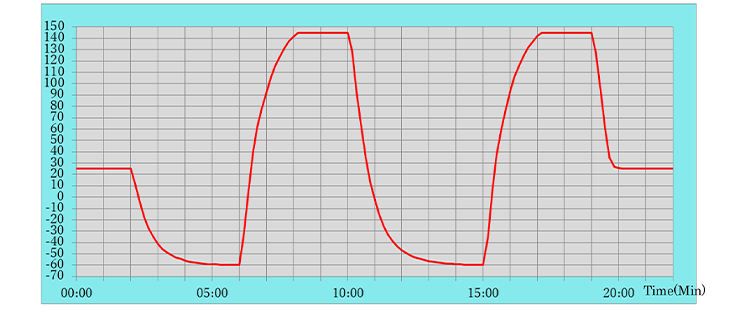

- Ultra-fast temperature change: Room temperature ⇒ -60℃ in 4 minutes; -60℃ ⇒ +145℃ in 2.5 minutes.
- Temperature control accuracy ±0.1℃; RS remote control capable; equipped with programmable
temperature controller.
Specification
| Type | iT550/iT555 |
| Temperature Range (℃) | -60 ～ +145 |
| Temperature accuracy (℃) | ±0.1 (FC-4610Temperature control device) |
| Temperature Sensor | Pt100 Platinum resistance thermometer、Thermocouple (K or T) |
| Heat release | Water-cooled type (Cooling chiller CCA-1112) |

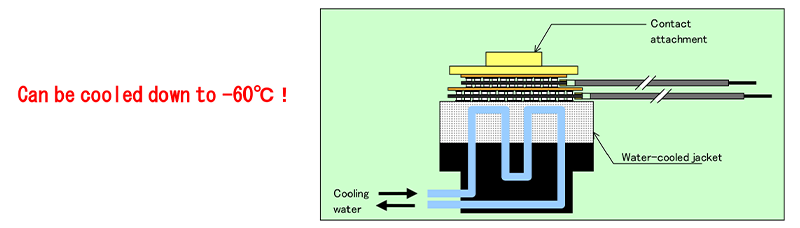

| Cooling and heating methods | UT-4040 (Cascade Peltier device) |
| Voltage (V) / Current (A) | DC 12 / 4 |
| Contact dimensions (mm) | 30 x 30 or 20 x 20 ※Standard Model |
| Weight (g) | 196 |
Product Catalog
For any questions regarding the product or product design tailored to specifications, please feel free to contact us.

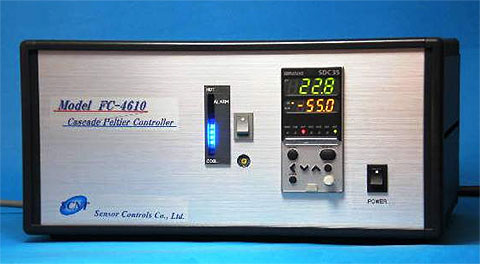

Temperature controller
Summary
This device is a temperature controller developed to drive a cascade-type Peltier temperature control head.
The temperature controller is equipped with a programmable controller, allowing for high-precision temperature control (±0.1℃) and a wide range of temperature control (-60℃ to +150℃), and it can also
be connected to a PC (RS-485). This is a higher-grade Peltier temperature control device that comes standard with a Pt100 temperature sensor.
Specification
| Type | FC-4610 |
| Temperature Range (℃) | －60 ～ ＋150 (Depends on Peltier specifications) |
| Temperature accuracy (℃) | ±0.1 |
| Temperature Sensor | Pt100 Platinum resistance thermometer、Thermocouple (K or T) |
| Output Voltage (V) / Current (A) | Two systems, DC-12V and 4V, exclusively for cascade Peltier. / MAX 6A |
| Control method/Temperature controller | Time proportional PID control / SDC-35（Asbil） |
| Temperature Program | 8 points |
| Power Voltage (V) | AC 100 ～ 240 |
| Dimension (mm) | 320 x 220 x 120(H) |
| Serial port / PC port | RS485 / Yes |
Product Catalog
For any questions regarding the product or product design tailored to specifications, please feel free to contact us.
