Temperature controller
FC-2410/3510/2440
Dedicated temperature controller for Peltier modules
Pt100 Platinum resistance thermometer included as standard with cooling and heating indicator
FC-2410

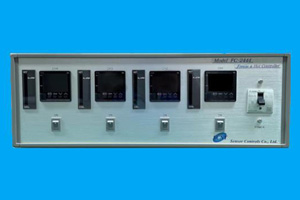

FC-2440
Features
- The multi-Peltier temperature controller FC-2410/3510 can control not only the Peltier elements manufactured by Sensor Controls but also the temperature of Peltier elements from other manufacturers
with different drive voltages - The FC-2410/3510 offers a high precision temperature control accuracy of ±0.1℃. By using dedicated temperature controller manufacturer software (sold separately), complex temperature testing programs
are possible. It is equipped with an interlock for water cooling. - Additionally, it is for temperature control of a unit that drives four Peltier elements with a separate 4CH control type.
- The temperature sensor is a standard Pt100 platinum resistance thermometer.
Specification
| Type | FC-2410 | FC-3510 | FC-2440 |
| Temperature Range (℃) | ±0.1 | ±0.1 | ±0.1 |
| Temperature accuracy (℃) | －50 ～ ＋150 (Depends on Peltier spec.) |
－40 ～ ＋150 | |
| Temperature Sensor | Pt100 Platinum resistance thermometer 25.0 |
Pt100 4 pieces included | |
| Output Voltage (V) / Current (A) |
DC 24 / 6.5 4 ～ 24V Can be set with dip switch |
4CH temperature control | |
| Control method | Time proportional PID control | ||
| Temperature controller | SDC-15 (Asbil) | SDC-35 (Asbil) | FZ-110(RKC Instrument) |
| Temperature program | N/A | 8 points control | 8 points control |
| Power supply voltage (V) | AC 100 ～ 240 | ||
| External dimensions (mm) | 260 x 200 x 70 | 320 x 220 x 120 | 430 x 350 x 150 |
| Serial port | RS-485 (Standard equipment) | ||
| Overheat PreventionThermostat |
Standard equipment | ||
Exterior dimensions

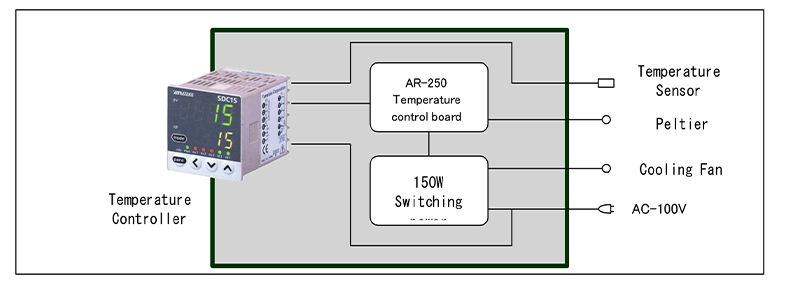

Block diagram
