Water-cooled and air-cooled Temperature control plate
Water-cooled Temperature control plate
DET-4120 / CHP-44LC / CHP-55LC
Highly reliable Peltier plates
provides a precise temperature test environment
Temperature Range: -40℃ ～ +120℃

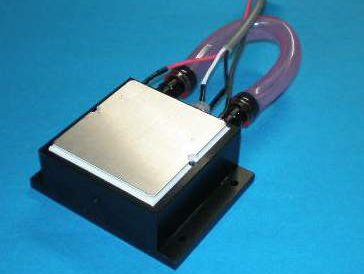

DET-4120
CHP-44LC

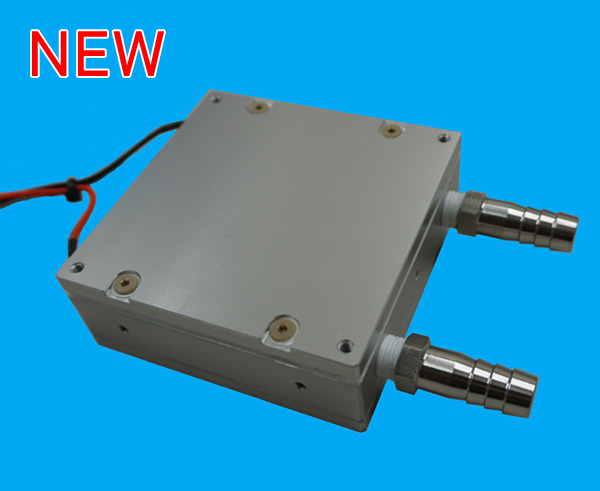

CHP-55LC
Feature
-
- The water-cooled temperature control plate connects to a cooling chiller and sets the circulating water temperature below 0℃ .
- The plate surface temperature can be controlled to ±0.1℃ by a temperature control device.
- It takes about 5 minutes to heat from -40℃ to +120℃ (cooling from Rt to -40℃ also takes 5 minutes).
- The used module employs high-reliability Japanese-made Peltier elements, guaranteeing durability in cooling and heating.
- By simply combining with a temperature controller, you can immediately start a full-fledged temperature characteristic test.
- Compatible chiller: CCA-1112A model made by Tokyo Rika Kikai Co., Ltd., with antifreeze Naibline and insulated hose included.
Specification
| Type | DET-4120 | CHP-44LCⅡ C | CHP-55LC |
| Heat release |
Water-cooled type (Cooling chiller) | ||
| Temperature Range (℃) (Max Temperature Difference) |
－40 ～ ＋120 (40℃) | ||
| Temperature Controller | FC-2410 or FC-3510 (Sold separately) | ||
| External dimensions (mm) | 100 x 125 x 37 | 78 x 60 x 28 | 80 x 80 x 29 |
| Peltier Module | UT-7070M | UT-4040M | UT-7070 |
| Plate dimensions (mm) | 100 x 90 | 60 x 60 x 32.5 | 80 x 80 |
| Weight (g) | 710 | 200 | 450 |
| Mounting screw pitch (mm) | 70 x 50 M4-4 | 56 x 56 M3-4 | 71.5 x 71.5 M3-4 |
| Driving Voltage (V) / Current (A) | DC 24 / 6 | DC 12 / 5 | DC 24/ 6 |
| Maximum heat absorption (W) | 86 | 35 | 60 |
| Cooling chiller (Option) | Type: EYERA CCA-1112 | ||
Product Catalog
The module specifications, heat absorption characteristic graphs, and dimensional drawings are listed in the catalog. For any questions regarding the product or product design tailored to specifications, please feel free to contact us.
Click here to download the catalog.
Air-cooled Temperature control plate
CHP-772HS / 77HI / 44HS /55HS
This model can easily provide a temperature environment with only an air-cooled cooling plate and a temperature controller.
The temperature range is from a maximum of 120℃ to a minimum of -20℃, making it ideal for heat dissipation and temperature control of LEDs, LDs (laser diodes), power devices, communication equipment, etc.
It can be used in a wide range of applications, including simple stages and in combination with production equipment.
We can respond to various customers’ temperature test requests with custom-made solutions.

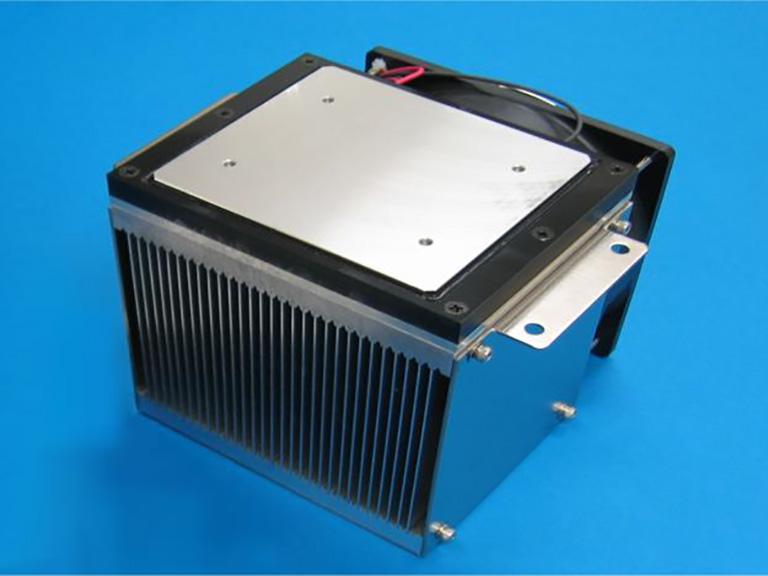

CHP-77HI
CHP-772HS

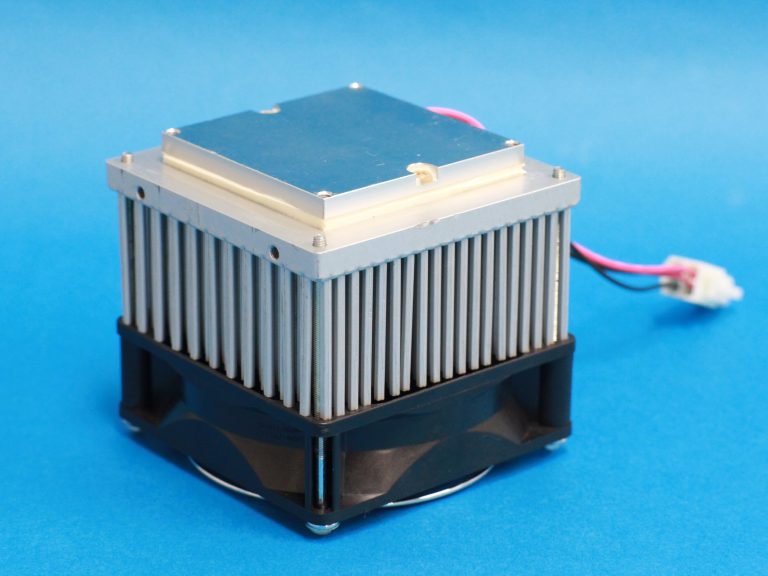

CHP-44HS

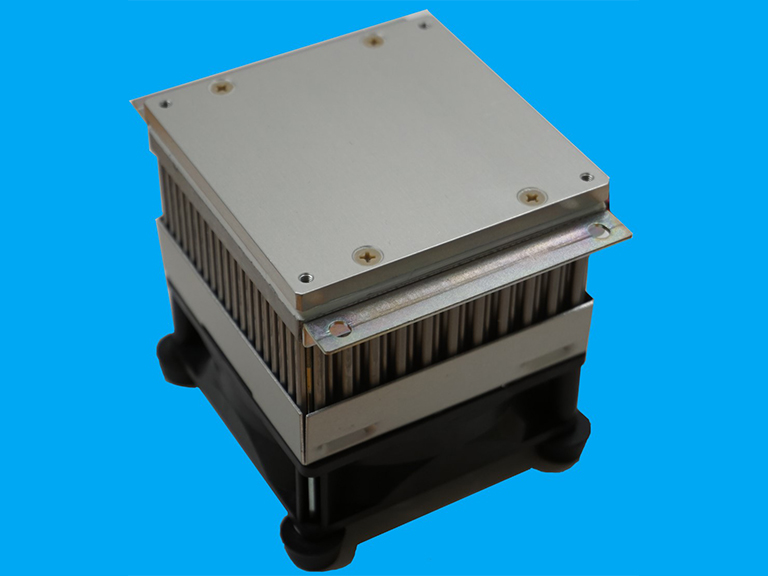

CHP-55HS
Specification
| Type | CHP-772HS | CHP-77HI | CHP-55HS | CHP-44HS |
| Heat release | Air-cooled type (Air cooling by DC－FAN) | |||
| Temperature Range(℃) | -10 ～ +100 | -20 ～ +120 | -15 ～ +125 | -20 ～ +120 |
| Temperature Sensor | Pt100 Platinum resistance thermometer (Included with temperature control device) |
|||
| External dimensions (mm) | 252 x 145 x 135 | 160 x 145 x 150 | 102 x 80 x 84 | 102 x 80 x 73 |
| Plate dimensions (mm) | 220 x 100 | 100 x 90 | 80 x 80 | 60 x 60 |
| Ｗeight（ｇ） | 5000 | 2035 | 580 | 1000 |
| Mounting screw pitch (mm) | 90 x 95 M3-6 | 70 x 50 M4-4 | 71.5 x 71.5 M3-4 | 56 x 56 M3-4 |
| Driving Voltage (V) / Current (A) |
DC 24 / 13 | DC 24 / 6.5 | DC 24 / 5 | DC 12 / 5 |
| Maximum heat absorption(W) | 150 | 83 | 64 | 35 |
Product Catalog
The module specifications, heat absorption characteristic graphs, and dimensional drawings are listed in the catalog. For any questions regarding the product or product design tailored to specifications, please feel free to contact us.
Click here to download the catalog.

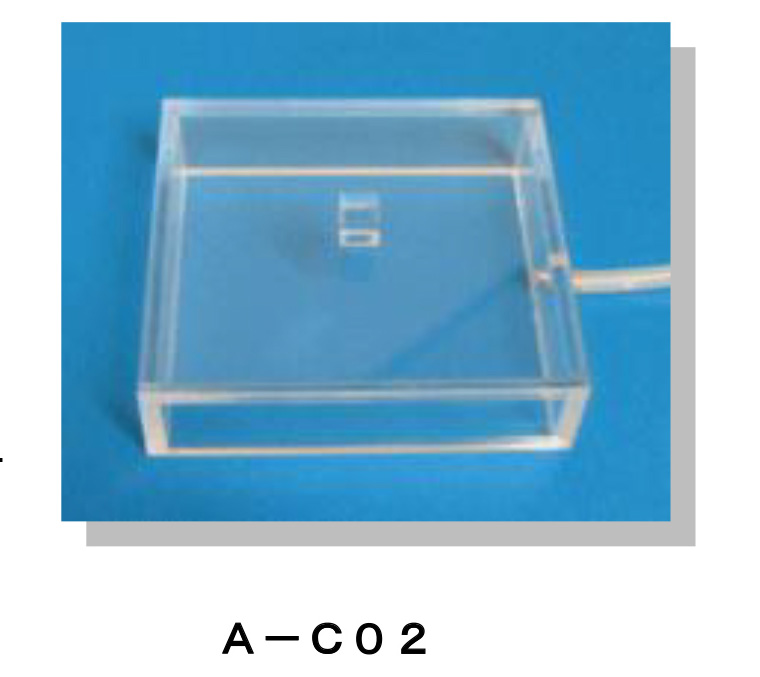

Anti-condensation cover
-
- Dedicated anti-condensation cover for air/water-cooled plates.
- The cover is just the right size to block outside air, and the nitrogen induced from the nitrogen outlet prevents condensation on the test object.
- Clear type allows you to visually see changes in the test object.

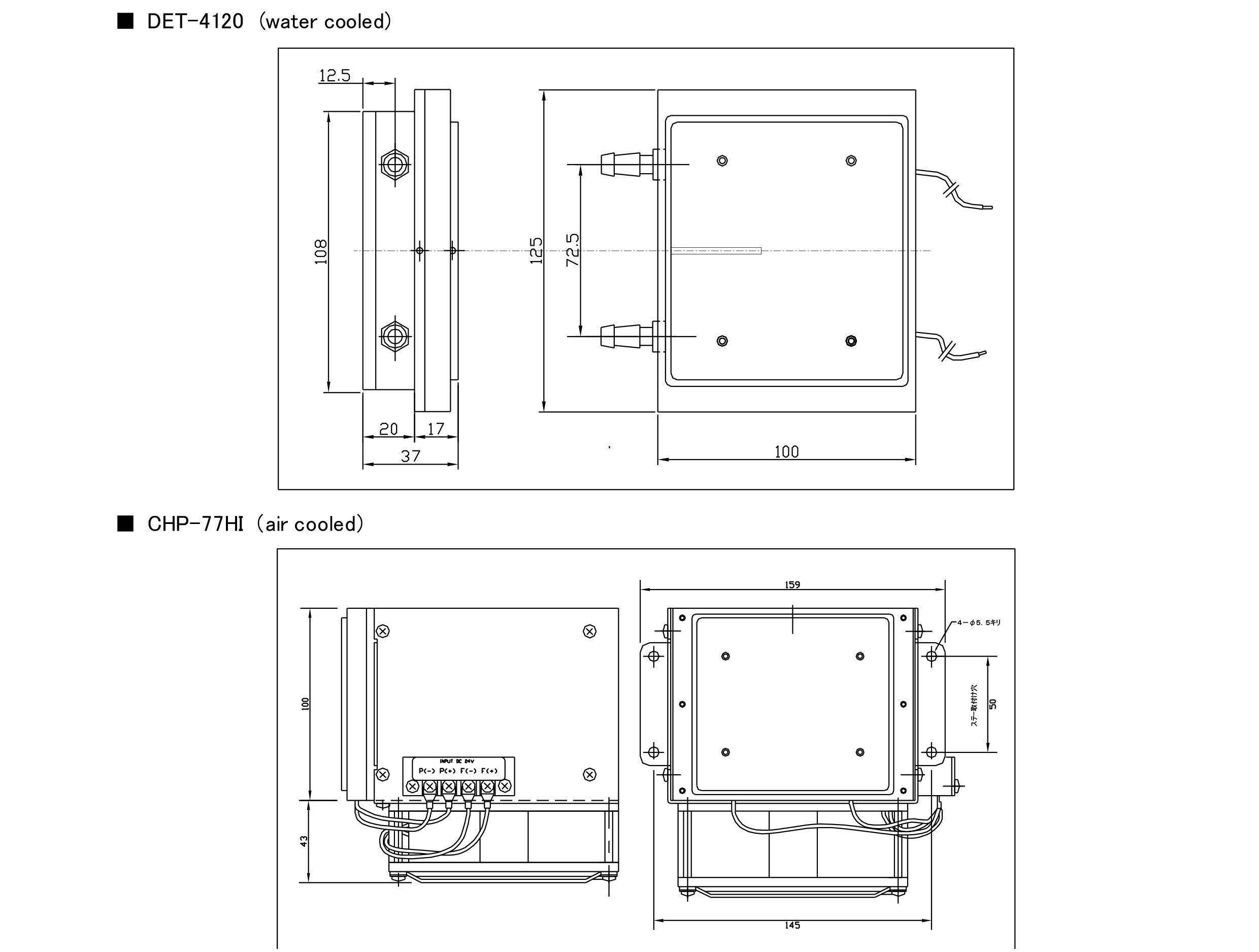

Exterior dimensions

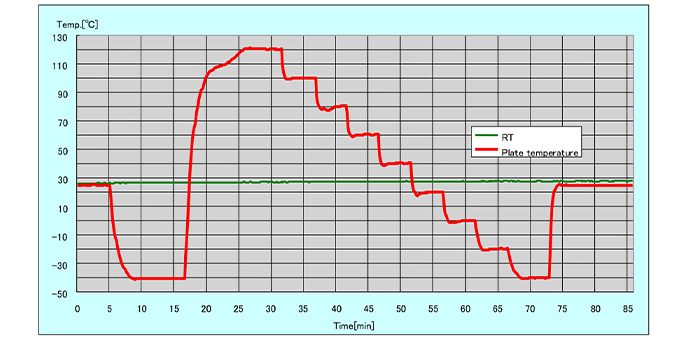

Temperature characteristics
