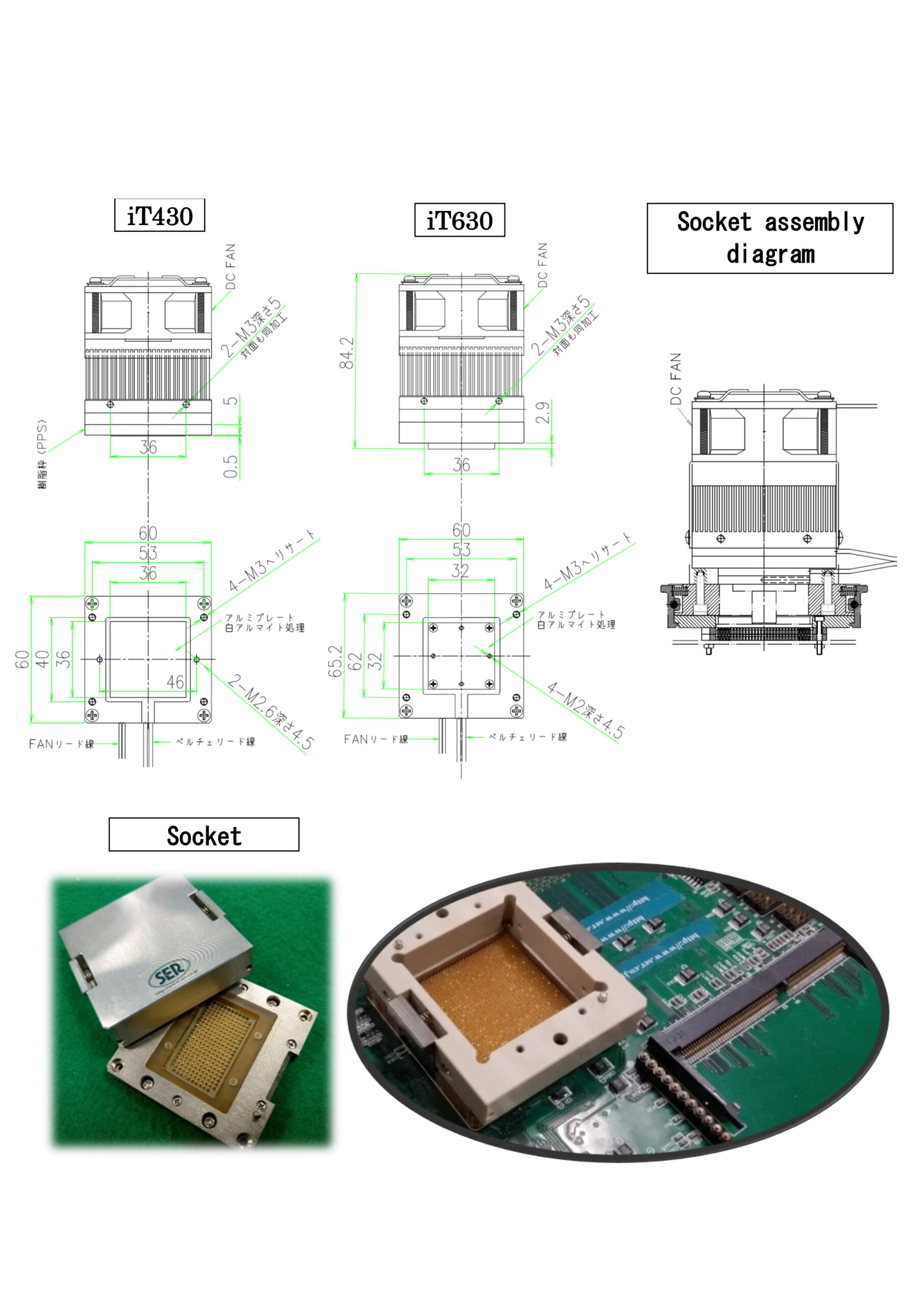

Peltier Thermal Socket
iT-430 / iT-630
Ideal for temperature-specific testing
for devices and in-vehicle sensors by Air cooling
-50℃ ～ +140℃
Features
- This device is an air-cooled Peltier temperature control socket that allows temperature testing from -50℃ to +140℃, thanks to the combination of a high-performance heat sink and a powerful DC fan
- Our unique Peltier element structure enables rapid temperature changes and high reliability, allowing for easy combination with a dedicated temperature controller.
- It can be conveniently used for temperature characteristic testing of semiconductors, electronic components and automotive sensors.
- The compatible socket is a one-touch socket manufactured by SER, allowing for easy installation.
- The contact attachments are designed to match the sample size.
Specification
| Type | iT430 | iT630 |
| Temperature Range (at RT25℃) | -35℃～120℃ | -50℃～140℃ |
| Heat absorption (W)/ΔT(℃) | 40/55 | 20/75 |
| Peltier Element | 24V/６A | 24V/8A |
| Drive Voltage/Current | 44dB | 53dB |
| Sensor insert hole | ±0.1 | |
| Cooling Element | Pt100 Platinum resistance thermometer (Included with temperature control device) |
|
| Temp-Controller | －50～＋150 | -60～＋150 |
| Peltier module | CASCADE | TRIPLE |
| Temperature Controller | FC-4310 | FC-6310 |
| Socket supplier | SER | SER |
Temperature characteristics
Product Catalog
For any questions regarding the product or product design tailored to specifications, please feel free to contact us.
